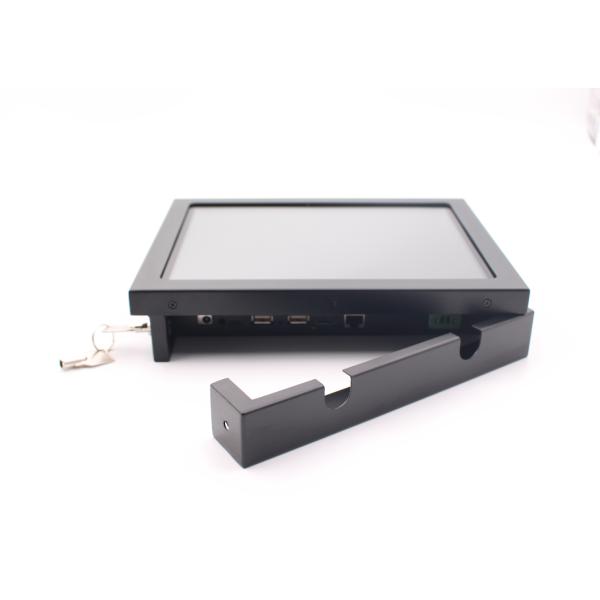

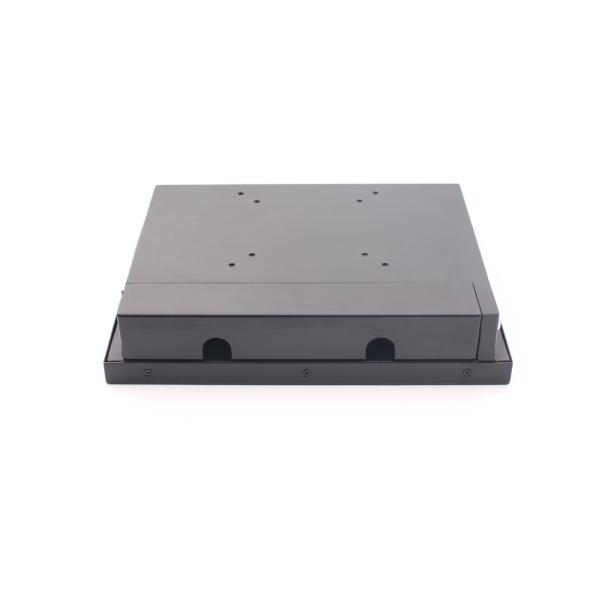

1000nits 10.4" Android Industrial Panel Pc XGA Rugged With Trapdoor

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD10PPCT5HBLE2

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Native resolution : 1024 x768

Brightness : 1000nits

Processor : RK3288, RK3399, Android 8/9/10

touch panel : projected capacitive touch

Mounting method : VESA

I/O : USB, COM, HDMI, Audio, LAN, WIFI

Operating Temperature : -10~60℃

Humidity : 10%~90% non condensing

Material : Aluminum Frame, Steel chassis

Warranty : 2 years

MTBF : 50000hours

Contact Now

android industrial panel pc 1000nits 10.4" XGA rugged with trapdoor

The ITD industrial chassis panel PC is fully-integrated that combines high-performance ARM based or x86 based PC system with Projected Capacitive Touch (PCT or PCAP)/Resistive Touch/IR Touch/SAW Touch Technology optional in a industrial-grade high bright TFT-LCD flat panel with rugged chassis design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to touch capabilities built into Windows 7/8/10 and other popular programming languages. The ITD chassis panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.

  • Kiosks
  • Transportation&Vehicle
  • Digital Signage
  • Medical
  • IoT&AI
  • HMI
  • Outdoor Displays

1000nits 10.4" Android Industrial Panel Pc XGA Rugged With Trapdoor1000nits 10.4" Android Industrial Panel Pc XGA Rugged With Trapdoor

PanelCell Type/Glass SurfaceTFT
Size/ Aspect Ratio10.4”/4:3
Active Area/ Pixel Pitch211.2(W) x 158.4(H)mm/0.297 × 0.20625mm
Native Resolution/ Colors1024 x 768/262K/16.7M
Brightness/ Contrast1000cd/㎡(1500cd/㎡ optional)/900:1
Response Time/ Viewing Angle(Typical)16ms/75/75/75/75
Light SourceLED Backlight with 50000Hours’Lifetime

SYSTEM

ItemAndroid SolutionX86 Solution 1X86 Solution 2
CPUARM Quad Core Cortex-A17, 1.8GHzIntel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
ChipsetRK3288(RK3399 optional)Intel Bay Trail SoCIntel SoC Chipset
Memory2GB; 4GB OptionalDual Channel, DDR3 1333/1600MHz Memory, Max.8GB2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
I/O1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN

LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

GENERAL

PowerInput VoltageDC 12V 2.0
Operation/Power Saving15~40W
Environment ConsiderationsOperating Temperature-10~60℃ (-20~70℃ optional)
Storage Temperature-20~70℃
Relative Humidity10%~90%
Order Information10.4” Chassis Panel PC 1000nits with PCAP Touch RK3288/ITD10PPCT5HBLE2
10.4” Chassis Panel PC 1000nits with Resistive Touch RK3288/ITD10PPCT1HBLE2
10.4” Chassis Panel PC 1000nits with IR Touch RK3288/ITD10PPCT2HBLE2
10.4” Chassis Panel PC 1000nits with Tempered Glass RK3288/ITD10PPCG1HBLE2
10.4” Chassis Panel PC 1000nits with PCAP Touch J1900/ITD10PPCT5HBLJ2
10.4” Chassis Panel PC 1000nits with Resistive Touch J1900/ITD10PPCT1HBLJ2
10.4” Chassis Panel PC 1000nits with IR Touch J1900/ITD10PPCT2HBLJ2
10.4” Chassis Panel PC 1000nits with Tempered Glass J1900/ITD10PPCG1HBLJ2
10.4” Chassis Panel PC 1000nits with PCAP Touch i3/ITD10PPCT5HBLI3
10.4” Chassis Panel PC 1000nits with Resistive Touch i3/ITD10PPCT1HBLI3
10.4” Chassis Panel PC 1000nits with IR Touch i3/ITD10PPCT2HBLI3
10.4” Chassis Panel PC 1000nits with Tempered Glass i3/ITD10PPCG1HBLI3
10.4” Chassis Panel PC 1000nits with PCAP Touch i5/ITD10PPCT5HBLI5
10.4” Chassis Panel PC 1000nits with Resistive Touch i5/ITD10PPCT1HBLI5
10.4” Chassis Panel PC 1000nits with IR Touch i5/ITD10PPCT2HBLI5
10.4” Chassis Panel PC 1000nits with Tempered Glass i5/ITD10PPCG1HBLI5
10.4” Chassis Panel PC 1000nits with PCAP Touch i7/ITD10PPCT5HBLI5
10.4” Chassis Panel PC 1000nits with Resistive Touch i7/ITD10PPCT1HBLI5
10.4” Chassis Panel PC 1000nits with IR Touch i7/ITD10PPCT2HBLI5
10.4” Chassis Panel PC 1000nits with Tempered Glass i7/ITD10PPCG1HBLI5
